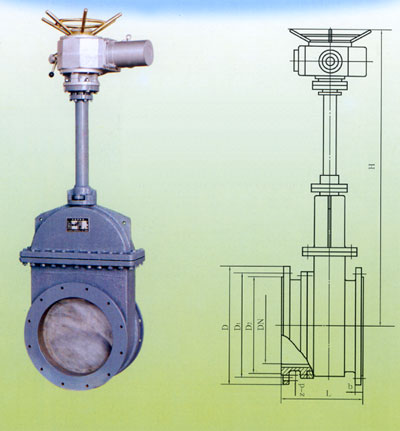

電動耐磨煤粉閥
Electric controlled wear
resistance coal power valve
 |
工作溫度≤180℃ |
|
Working temperature≤180℃Valve body material carbon steel WCB |
主要外型尺寸：Major dimension
|
尺寸mm 通徑DN 壓力PNMPa - |
D |
D1 |
D2 |
b |
Z-b |
L |
H |
|
| 1.6 |
200 |
335 |
295 |
265 |
26 |
12-φ23 |
330 |
1100 |
| 250 |
405 |
355 |
320 |
30 |
12-φ25 |
340 |
1200 |
|
| 300 |
460 |
410 |
375 |
30 |
12-φ25 |
345 |
1310 |
|
| 350 |
520 |
470 |
435 |
34 |
16-φ25 |
350 |
1410 |
|
| 400 |
580 |
525 |
485 |
36 |
16-φ30 |
355 |
1520 |
|
| 450 |
640 |
585 |
545 |
40 |
20-φ30 |
360 |
1660 |
|
| 500 |
705 |
650 |
608 |
44 |
20-φ34 |
365 |
1840 |
|
| 2.5 |
200 |
360 |
310 |
278 |
34 |
12-φ25 |
330 |
1100 |
| 250 |
425 |
370 |
332 |
36 |
12-φ30 |
340 |
1200 |
|
| 300 |
485 |
430 |
390 |
40 |
16-φ30 |
345 |
1310 |
|
| 350 |
550 |
490 |
448 |
44 |
16-φ34 |
350 |
1410 |
|
| 400 |
610 |
550 |
505 |
48 |
16-φ34 |
355 |
1520 |
|
| 450 |
660 |
600 |
555 |
50 |
20-φ34 |
360 |
1660 |
|
| 500 |
730 |
660 |
610 |
52 |
20-φ41 |
365 |
1840 |
|
| |
|
|
